Superabsorbent Polymer (SAP) Hydrogels: Properties, Applications & Mechanical Behavior
by Maya Salame and Dimitria Camasao
Application Scientists
What is a Superabsorbent Polymer Hydrogel?
Superabsorbent polymer (SAP) hydrogels are three-dimensional, crosslinked polymer networks capable of absorbing and retaining extremely large amounts of water—often hundreds to thousands of times their own weight—while remaining insoluble. Their structure is based on hydrophilic polymer chains containing functional groups such as carboxylate, hydroxyl, or amide moieties, which generate strong osmotic driving forces for water uptake.
SAPs are predominantly synthetic materials, though many formulations incorporate natural polymers such as starch, cellulose, chitosan, proteins, or their derivatives as backbones or grafting substrates. Industrial SAPs are most commonly derived from acrylic acid, its salts, and acrylamide, either alone or copolymerized with natural polymers to enhance sustainability or functionality.
Synthesis routes include bulk polymerization, solution polymerization, suspension polymerization, radiation-induced polymerization, and physical methods such as freeze–thaw cycling. These approaches enable control over network density, porosity, and swelling behavior, allowing SAP hydrogels to be tailored for applications ranging from agriculture to biomedical systems.
Key Properties of Superabsorbent Polymer Hydrogels
Physicochemical Characteristics
Superabsorbent polymer hydrogels form through the creation of a crosslinked polymer network that traps water within its structure. Swelling is driven by a balance between osmotic pressure, electrostatic repulsion of charged groups, and elastic retraction forces from the network.
Key physicochemical features include:
- Gelation mechanisms: Free-radical polymerization of hydrophilic monomers; graft copolymerization onto natural polymer backbones; physical association via hydrogen bonding or ionic interactions.
- Crosslinking strategies:
- Covalent crosslinking using bifunctional crosslinkers.
- Ionic crosslinking through multivalent ions.
- Physical crosslinking via hydrogen bonding or freeze–thaw cycles.
- Environmental sensitivity: Swelling behavior is strongly influenced by pH, ionic strength, temperature, and solvent composition.
These properties enable SAP hydrogels to respond dynamically to their surroundings, making them suitable for controlled absorption and release applications.
Mechanical Properties
Despite their high water content, SAP hydrogels exhibit defined mechanical behavior governed by crosslink density, polymer composition, and network architecture. They are typically soft and deformable in the swollen state, with stiffness increasing as crosslinking density rises.
Mechanical characteristics include:
- Low elastic modulus in fully swollen conditions.
- Increased stiffness and strength with higher crosslink density or filler incorporation.
- Time-dependent mechanical behavior linked to swelling, deswelling, and environmental changes.
- Structural stiffening or weakening associated with repeated swelling cycles or degradation processes.
Mechanical performance is therefore closely coupled to hydration state and network evolution over time.
Biological Interactions
Biological interactions of SAP hydrogels depend strongly on their chemical composition and degree of modification. While many SAPs are not inherently bioactive, incorporation of natural polymers or functional groups can improve biological compatibility.
Reported interactions include:
- Generally low cell adhesion on purely synthetic SAPs.
- Improved biocompatibility when derived from or grafted onto natural polymers.
- Minimal enzymatic degradation for fully synthetic networks.
- Tunable degradation behavior when biodegradable components are introduced.
These features allow SAP hydrogels to be adapted for selected biomedical uses where passive interaction or controlled absorption is desired.
Applications of Superabsorbent Polymer Hydrogels
Tissue Engineering
In tissue engineering, SAP hydrogels have been explored primarily as moisture-retaining matrices and structural fillers rather than bioactive scaffolds. When combined with natural polymers, they can provide hydrated environments that support nutrient transport and structural stability in engineered constructs.
3D Cell Culture & Disease Models
SAP-based hydrogels are used in niche cell culture applications where high water retention and controlled swelling are advantageous. Modified formulations can support three-dimensional culture by maintaining hydrated microenvironments, though limited cell adhesion often necessitates further functionalization.
Drug, Gene & Cell Delivery
Superabsorbent polymer hydrogels are widely studied as carriers for drugs and bioactive molecules. Their high swelling capacity enables efficient loading, while environmental responsiveness allows triggered or sustained release. Ionic interactions and network density play key roles in controlling release kinetics.
Agriculture & Soil Conditioning
Superabsorbent polymer hydrogels are extensively used in agriculture as soil conditioners and water‐management agents. When incorporated into soil, SAPs absorb irrigation or rainwater and gradually release it back to plant roots, improving water availability during dry periods. This water-retention capability enhances seed germination, root development, and overall plant growth while reducing irrigation frequency. SAP hydrogels also help limit nutrient leaching by retaining dissolved fertilizers within the swollen network, thereby improving fertilizer-use efficiency and soil structure, particularly in arid and sandy soils.
Environmental Remediation & Wastewater Treatment
Superabsorbent polymer hydrogels are widely applied in environmental remediation, particularly for wastewater treatment. Their highly swollen networks and functional groups enable efficient adsorption of heavy metal ions, dyes, and organic pollutants from aqueous solutions. SAP formulations incorporating natural polymers or inorganic fillers further enhance adsorption capacity and selectivity. Swelling behavior, pH responsiveness, and ionic interactions play central roles in pollutant capture, making SAP hydrogels effective, low-cost materials for water purification and environmental cleanup applications.
Why the Viscoelasticity of Superabsorbent Polymer Hydrogels Matters
The viscoelastic behavior of SAP hydrogels governs how they deform, dissipate energy, and recover under mechanical loading. Because these materials undergo large volumetric changes during swelling and deswelling, time-dependent mechanical responses are intrinsic to their function. Viscoelasticity influences structural stability, load distribution, and durability during repeated hydration cycles, directly impacting performance in both industrial and biomedical contexts.
Methods to Characterize the Viscoelasticity of Superabsorbent Polymer Hydrogels
Mechanical characterization of SAP hydrogels commonly relies on bulk rheometry, compression testing, tensile testing, and swelling-based mechanical measurements. These methods provide valuable information on stiffness, strength, and viscoelastic parameters but are often destructive or limited to endpoint measurements. Large deformations, sample handling, and inability to monitor the same specimen over time restrict insight into swelling kinetics and long-term mechanical evolution.
Case study: Mechanical Characterization of Superabsorbent Polymer Hydrogel Using ElastoSens™ Bio
ElastoSens™ Bio: A Non-Destructive Tool to Measure Soft Superabsorbent Polymer Hydrogels
The ElastoSens™ Bio is a non-contact, resonance-based mechanical testing platform specifically designed for soft and highly hydrated materials. By tracking changes in resonance frequency and damping, it enables sensitive and repeatable measurement of viscoelastic properties without physically deforming the sample. This approach is particularly well suited for superabsorbent polymer hydrogels, which are fragile, highly swollen, and mechanically dynamic.
Key advantages include non-destructive testing, real-time monitoring of mechanical evolution, high sensitivity to subtle stiffness changes, and compatibility with sterile workflows for longitudinal studies.
To demonstrate the capabilities of the ElastoSens™ Bio, a series of tests were performed on superabsorbent polymer–based hydrogels. The following section outlines the materials and methods employed, followed by the results, providing a practical example of the instrument’s ability to non-destructively monitor viscoelastic behavior over time.
Material and methods
SAP particles were weighed and dispensed directly into the ElastoSens™ Bio sample holder. The test liquid was then added to reach the targeted water-to-powder ratio (g liquid per g SAP). After liquid addition, the sample was gently mixed (or allowed to self-distribute) to wet the powder uniformly, then immediately transferred to measurement to capture early absorption and gel build-up (Figure 1). To map concentration effects, the water-to-powder ratio was varied across a practical formulation range: 100, 150, 200, 250, 300, 350, and 400 g/g.
Measurements were performed at a fixed temperature of 25 °C with a constant acquisition interval (e.g., every 10 s). The run length was chosen to capture (i) the rapid absorption phase and (ii) the approach to a plateau in shear storage modulus G′. For comparability across samples, the same sample volume, membrane, and instrument settings were used for all conditions.
Figure 1. Schematic of SAP powder hydration in the sample holder.
Results and discussion
Figure 3 shows that SAP shear storage modulus (G’) and absorption kinetics strongly depend on the water-to-powder ratio. At lower ratios (more SAP per unit liquid), the gel developed substantially higher stiffness, with G′ after 4 min highest at ~100 g/g and progressively decreasing as the formulation became more dilute (reaching only a few hundred Pa by ~400 g/g). In parallel, the absorption initiation time—defined here as the time required for the gel to reach a target firmness of G′ = 700 Pa—increased with increasing water-to-powder ratio, indicating slower development of mechanical integrity in more dilute conditions. Notably, both trends are nonlinear, with a sharp drop in early stiffness and a marked increase in time-to-firmness as the ratio moves from ~100–200 g/g into the more dilute regime, consistent with a concentration-controlled transition where small formulation changes can produce disproportionately large shifts in perceived “set time” and early gel strength.

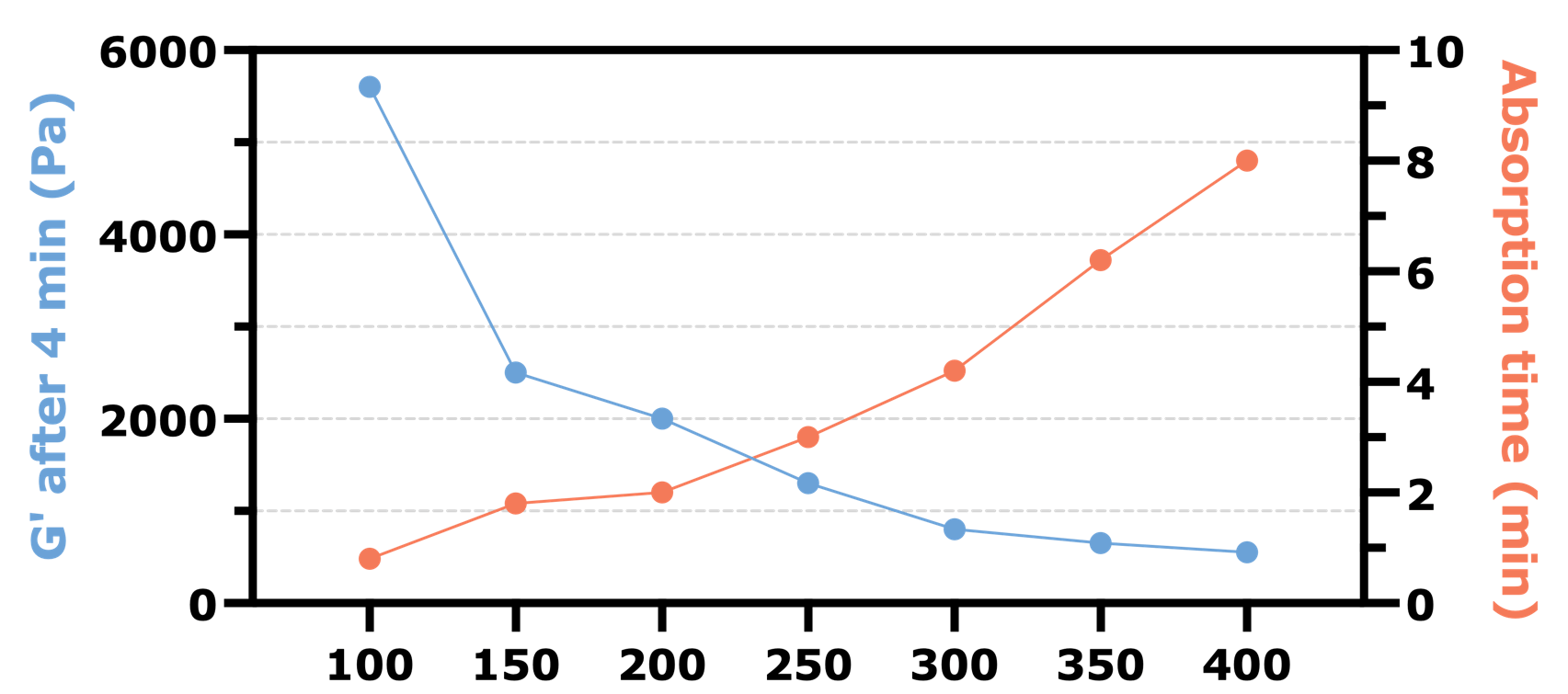

Figure 2. Effect of the water-to-powder ratio on the shear elastic modulus (G’) after 4 minutes of absorption (blue) and absorption initiation time (time needed by the formed gel to reach a firmness of 700 Pa) as a function of the water-to-powder ratio (orange).
Conclusions and perspectives
The mechanical behavior of superabsorbent polymer (SAP) hydrogels—driven by extreme swelling, crosslinked network structure, and time-dependent viscoelasticity—is central to their performance in agricultural, environmental, and emerging biomedical applications. Because SAPs undergo large volumetric changes while remaining soft and highly hydrated, their mechanics must be monitored without disrupting structure or hydration.
Non-destructive viscoelastic characterization with the ElastoSens™ Bio enables:
- High-sensitivity and repeatable measurements tailored to soft, highly swollen SAP hydrogels.
- Real-time monitoring of gelation and swelling kinetics, including height evolution and its impact on G′.
- Identification of the liquid–gel transition point and final (end) stiffness.
- Longitudinal testing of the same sample to follow swelling-induced mechanical evolution over time, under sterile conditions if required.
These capabilities support improved understanding of swelling–mechanics relationships, enhanced reproducibility, and better control of SAP hydrogel performance across applications.
References
Ostrand, M. S., DeSutter, T. M., Daigh, A. L., Limb, R. F., & Steele, D. D. (2020). Superabsorbent polymer characteristics, properties, and applications. Agrosystems, Geosciences & Environment, 3(1), e20074.
Ma, X., & Wen, G. (2020). Development history and synthesis of super-absorbent polymers: a review. Journal of Polymer Research, 27(6), 136.
Yang, Y., Liang, Z., Zhang, R., Zhou, S., Yang, H., Chen, Y., … & Yu, D. (2024). Research advances in superabsorbent polymers. Polymers, 16(4), 501.
