Application Note | ElastoSens™ Bio
Polyacrylamide Hydrogels: Properties, Applications & Mechanical Behavior
by Maya Salame and Dimitria Camasao
Application Scientists
What is a Polyacrylamide (PAM) Hydrogel?
Polyacrylamide (PAM) hydrogels are synthetic, water-swollen polymer networks formed from acrylamide monomers chemically or physically crosslinked into a three-dimensional structure. Polyacrylamide itself is an organic polymer composed of repeating acrylamide subunits, and when crosslinked in aqueous environments, it forms soft, highly hydrated gels with tissue-like mechanical behavior. PAM hydrogels are entirely synthetic and industrially produced, offering high batch-to-batch reproducibility and tunable properties. They are typically synthesized through free-radical polymerization of acrylamide monomers, with network formation controlled by initiators, crosslinkers, or irradiation-based methods. Due to their non-toxic nature, high water content, and controllable network architecture, polyacrylamide hydrogels have become widely used as model soft materials in biomedical and engineering research.
Key Properties of Polyacrylamide Hydrogels
Physicochemical Characteristics
Polyacrylamide hydrogels form through polymerization and crosslinking mechanisms that define their network density, swelling behavior, and stability. Gel formation relies on the lateral linking of polymer chains, preventing dissolution in water and creating a stable hydrogel matrix.
Common gelation and crosslinking strategies include:
- Free-radical polymerization of acrylamide monomers in aqueous solution.
- Chemical crosslinking using bifunctional crosslinkers such as methylenebisacrylamide.
- Radiation-induced crosslinking without added chemical crosslinkers.
- Dual physical–chemical crosslinking combining covalent bonds and secondary interactions.
Environmental parameters such as monomer concentration, crosslinking density, temperature, pH, and ionic strength strongly influence gel formation, swelling kinetics, and final network structure. PAM hydrogels can undergo significant volume changes during swelling while retaining structural integrity.
Mechanical Properties
Polyacrylamide hydrogels exhibit soft, elastic, and viscoelastic mechanical behavior that can be precisely tuned over a wide range. Their stiffness and strength are primarily governed by crosslinking density, polymer concentration, and network architecture.
Key mechanical characteristics include:
- Elastic moduli ranging from very soft, tissue-like values to significantly stiffer regimes.
- Strong dependence of stiffness, extensibility, and toughness on crosslinking degree.
- Trade-offs between strength and brittleness at high crosslinking densities.
- Enhanced mechanical performance through composite, double-network, or nanoparticle-reinforced designs.
Mechanical properties may evolve over time due to swelling, network rearrangement, or degradation, making time-dependent characterization essential for many applications.
Biological Interactions
Although polyacrylamide is not inherently bioactive, PAM hydrogels are widely used in biological contexts due to their biocompatibility and controllable surface properties. They are generally non-toxic and non-immunogenic when properly synthesized and purified.
Biological interactions include:
- Limited intrinsic cell adhesion, enabling use as an inert mechanical substrate.
- Tunable protein adsorption depending on surface chemistry and hydrophilicity.
- Support for cell viability, proliferation, and migration when. appropriately modified
- Minimal enzymatic degradation, allowing long-term structural stability.
These features make PAM hydrogels valuable as reference materials for studying cell–matrix interactions driven primarily by mechanics rather than biochemical cues.
Applications of Polyacrylamide Hydrogels
Tissue Engineering
Polyacrylamide hydrogels are used as mechanically tunable scaffolds and model matrices in tissue engineering research. Their elastic properties can be adjusted to mimic those of native tissues, supporting studies of mechanotransduction, cartilage replacement concepts, and load-bearing soft tissue analogs when reinforced or combined with secondary networks.
3D Cell Culture & Disease Models
In three-dimensional cell culture systems, PAM hydrogels serve as well-defined mechanical environments for investigating how cells respond to substrate stiffness and viscoelasticity. Their chemical inertness allows researchers to decouple mechanical effects from biochemical signaling, making them valuable for disease modeling, mechanobiology, and cell fate studies.
Drug, Gene & Cell Delivery
Polyacrylamide hydrogels are used as diffusion-controlled matrices for drug delivery due to their high water content, adjustable mesh size, and chemical stability. By tuning gelation ratios and network density, release kinetics of encapsulated drugs or biomolecules can be precisely controlled. PAM-based systems are also explored for localized delivery platforms where long-term stability is required.
Biosensors & Soft Bioelectronics
Polyacrylamide hydrogels are extensively used in biosensors and soft bioelectronic devices because of their tunable viscoelasticity, optical transparency, and compatibility with functional fillers. PAM-based composites incorporating nanoparticles or conductive additives enable the development of flexible sensors capable of detecting mechanical deformation, biochemical signals, or magnetic stimuli. Their stability under repeated deformation makes them suitable for wearable health-monitoring and diagnostic platforms.
Why the Viscoelasticity of Polyacrylamide Hydrogels Matters
The viscoelastic behavior of polyacrylamide hydrogels is critical to their performance in biological and functional applications. Time-dependent stress relaxation, creep, and energy dissipation influence how cells sense mechanical cues, how loads are distributed within the material, and how the gel responds to repeated or sustained deformation. For applications ranging from cell culture to soft tissue mimics, understanding and controlling viscoelastic properties enables more accurate replication of native tissue mechanics and improves predictive performance under dynamic conditions.
Methods to Characterize the Viscoelasticity of Polyacrylamide Hydrogels
The mechanical and viscoelastic properties of PAM hydrogels are commonly assessed using bulk rheometry, tensile testing, and compression testing. These techniques provide quantitative measurements of elastic modulus, storage and loss moduli, and stress–strain behavior. However, traditional methods often require direct contact, relatively large deformations, or destructive sample handling. As a result, they may not capture early-stage gelation, subtle viscoelastic changes, or long-term mechanical evolution in hydrated or sterile environments.
Case study: Mechanical Characterization of Polyacrylamide Hydrogel Using ElastoSens™ Bio
ElastoSens™ Bio: A Non-Destructive Tool to Measure Soft Polyacrylamide Hydrogels
The ElastoSens™ Bio is a non-destructive, contact-free instrument designed specifically for characterizing soft materials such as polyacrylamide hydrogels. It operates by inducing gentle mechanical vibrations in the sample and analyzing the resulting resonance response to extract viscoelastic properties in real time. This approach is highly sensitive to small changes in stiffness and is well suited for soft, highly hydrated gels.
Key advantages include non-destructive testing, real-time monitoring of gelation kinetics, high repeatability, and the ability to measure the same sample over time without compromising sterility. The system enables continuous tracking of mechanical evolution from the liquid–gel transition through to final stiffness, making it particularly valuable for studying polymerization, swelling, and long-term stability.
To demonstrate the capabilities of the ElastoSens™ Bio, we performed a series of tests on polyacrylamide-based hydrogels. The following section outlines the materials and methods employed, followed by the results, providing a practical example of the instrument’s ability to non-destructively monitor viscoelastic properties over time.
Material and methods
Polyacrylamide (PAAm) hydrogels were prepared by diluting a 40% acrylamide stock solution (37.5:1; Bio-Rad) in deionized water to final polymer concentrations of 5, 7.5, 10, 12.5, and 15% (v/v). Polymerization was initiated by adding freshly prepared 10% (w/v) ammonium persulfate (APS; 1% v/v final) and TEMED (0.2% v/v final) under a fume hood, keeping APS and TEMED fixed across all formulations. The precursor solution was mixed rapidly, poured immediately into Petri dishes, and allowed to polymerize at room temperature. After ~30 min, dishes were sealed (e.g., parafilm) to minimize dehydration and gels were left to fully cure for 24 h at room temperature. Gels were then cut to the required dimensions for the μ-volume sample holder, and PAAm formulations (5–15%) were characterized using the ElastoSens™ Bio.
Results and discussion
Increasing polyacrylamide (poly-A) concentration from 5% to 15% (w/v) led to an increase in shear storage modulus (G′), spanning over an order of magnitude across the tested range (Figure 1). Low-concentration gels (5–7.5%) exhibited relatively soft mechanics, whereas higher concentrations (10–15%) produced progressively stiffer networks, reaching G′ values above 40 kPa at 15% poly-A. Across all conditions, measurements were highly reproducible, with standard deviations consistently below 4% (n = 3), demonstrating reliable mechanical characterization using the μ-volume sample holder of the ElastoSens™ Bio. This trend is expected because higher polymer concentration creates a denser network with more chain entanglements/crosslinks, which increases the elastic response (G′). Overall, the data demonstrate that the ElastoSens™ Bio can clearly distinguish stiffness differences driven by hydrogel formulation.

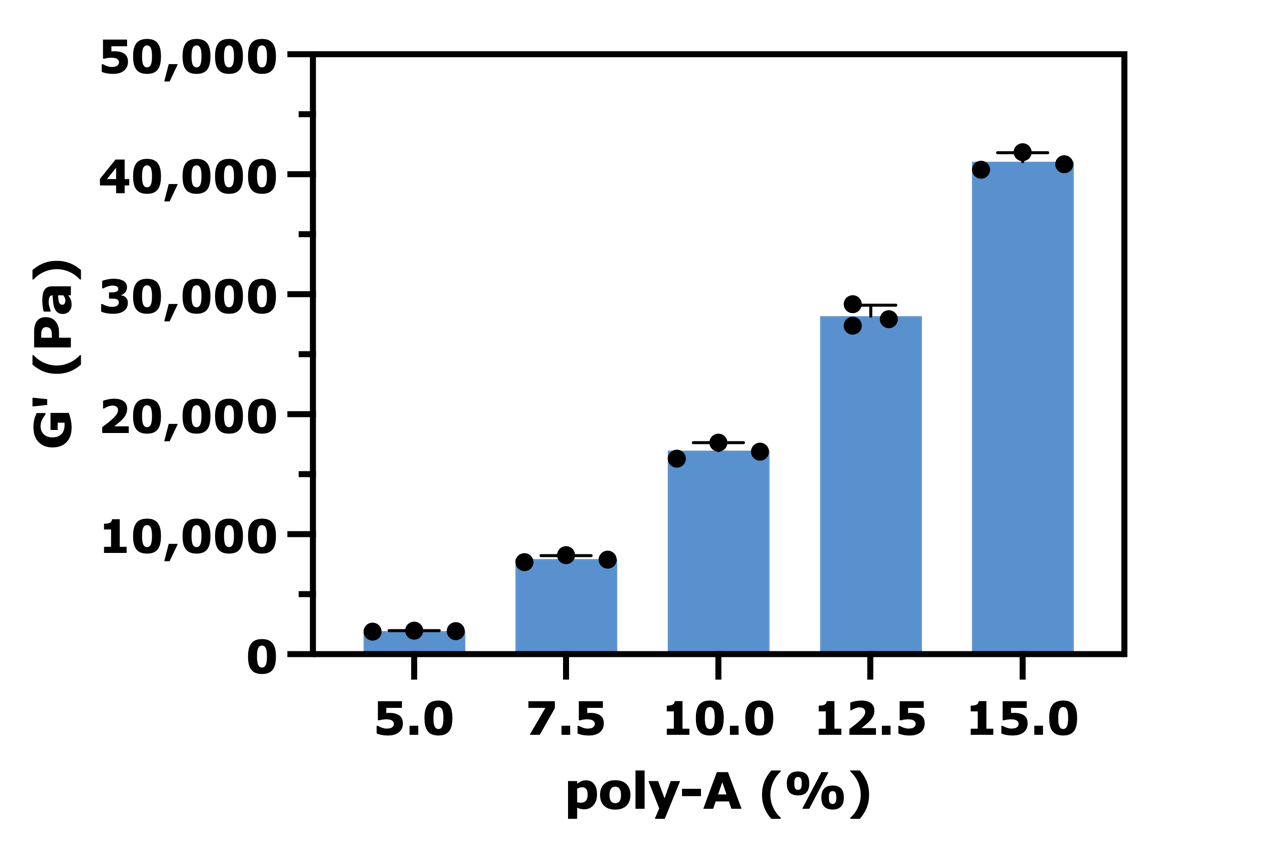

Figure 1. Shear storage modulus (G′) of polyacrylamide (poly-A) hydrogels as a function of polymer concentration (5–15% w/v), measured using the μ-volume sample holder of the ElastoSens™ Bio. Bars represent mean ± SD (n = 3).
Conclusions and perspectives
The mechanical performance of polyacrylamide hydrogels—governed by crosslinking density, swelling behavior, and viscoelasticity—is central to their use in biomedical, sensing, and soft-material applications. As soft, highly hydrated, and tunable systems, PAM hydrogels require precise mechanical monitoring without altering their structure or environment.
- Non-destructive technology optimized for soft materials.
- High sensitivity and repeatability across wide stiffness ranges.
- Real-time monitoring of gelation kinetics and liquid–gel transition.
- Direct measurement of final gel stiffness.
- Longitudinal testing of the same sample under hydrated or sterile conditions.
- Photostimulation module available for real-time monitoring of photocrosslinking when applicable.
Together, these capabilities enable deeper insight into structure–property relationships, improved reproducibility, and more robust translation of polyacrylamide hydrogel systems from fundamental research to applied use.
References
Sennakesavan, G., Mostakhdemin, M., Dkhar, L. K., Seyfoddin, A., & Fatihhi, S. J. (2020). Acrylic acid/acrylamide based hydrogels and its properties-A review. Polymer Degradation and Stability, 180, 109308.
Zainulabdeen, K., Younis, R. W., Jwad, R. S., Yusop, R. M., Yousif, E., & Moneim, A. E. A. (2023). An overview of the biological activity of polyacrylamide hydrogels: Biological activities of hydrogels. Journal of Biotechnology Research Center, 17(2).
Awasthi, S., Gaur, J. K., Bobji, M. S., & Srivastava, C. (2022). Nanoparticle-reinforced polyacrylamide hydrogel composites for clinical applications: A review. Journal of Materials Science, 57(17), 8041-8063.
Kandow, C. E., Georges, P. C., Janmey, P. A., & Beningo, K. A. (2007). Polyacrylamide hydrogels for cell mechanics: steps toward optimization and alternative uses. Methods in cell biology, 83, 29–46.
