Application Note | ElastoSens™ Bio
Agarose Hydrogels: Properties, Applications & Mechanical Behavior
by Maya Salame and Dimitria Camasao
Application Scientists
What Is an Agarose Hydrogel?
Agarose is a natural, linear polysaccharide extracted primarily from marine red algae. Structurally, it is composed of repeating agarobiose units, a disaccharide consisting of D-galactose and 3,6-anhydro-L-galactose. When dissolved in hot aqueous solutions and subsequently cooled, agarose chains undergo self-assembly into a three-dimensional network stabilized by hydrogen bonding and helix formation, entrapping large volumes of water and forming a physically crosslinked hydrogel.
Industrially, agarose is derived from agar through purification processes that remove agaropectin, yielding a neutral, low-sulfate polymer with high gel purity. Its thermo-reversible gelation behavior, chemical inertness, and reproducible structure have made agarose a widely used biomaterial in biotechnology, electrophoresis, and biomedical research. These intrinsic characteristics also support its growing adoption as a model and functional hydrogel system in tissue engineering and regenerative medicine.
Key Properties of Agarose Hydrogels
Physicochemical Characteristics
Agarose hydrogel formation is governed by temperature-driven molecular self-organization rather than chemical crosslinking. Upon cooling from a sol state, agarose chains transition from random coils into double-helical segments that aggregate into a physically crosslinked network.
Key physicochemical features include:
- Thermo-reversible gelation, enabling repeated sol–gel transitions without chemical modification.
- Hydrogen-bond-driven network formation, eliminating the need for toxic crosslinkers.
- High water uptake capacity, supporting nutrient diffusion and molecular transport.
- Neutral and inert chemical nature, contributing to low immunogenicity.
Environmental parameters such as polymer concentration, cooling rate, ionic strength, and molecular weight directly influence pore size, gel stiffness, and permeability.
Mechanical Properties
Agarose hydrogels exhibit tunable mechanical behavior that spans the range of many soft biological tissues. Their stiffness and viscoelastic response are primarily controlled by polymer concentration and network density.
Key mechanical characteristics include:
- Elastic moduli adjustable from sub-kilopascal to hundreds of kilopascals.
- Predominantly elastic behavior with measurable viscous dissipation.
- Poroelastic properties that couple mechanical deformation with fluid flow.
- Time-dependent stress relaxation relevant to mechanobiological signaling.
Although agarose is intrinsically non-degradable under physiological conditions, mechanical properties can evolve over time in composite or enzymatically treated systems, enabling controlled structural remodeling in long-term applications.
Biological Interactions
Agarose is inherently bioinert, which minimizes nonspecific protein adsorption and immune activation. While native agarose does not promote strong cell adhesion, it provides a highly controlled physical microenvironment for cell encapsulation and mechanobiology studies.
Biological interaction features include:
- High cytocompatibility and low inflammatory response.
- Maintenance of rounded cell morphology in soft matrices.
- Support for long-term cell viability and phenotype preservation.
- Enzymatic degradability when exposed to externally introduced agarases.
Surface modification or blending with bioactive molecules can introduce cell-adhesive motifs without compromising the underlying mechanical integrity.
Applications of Agarose Hydrogels
Tissue Engineering
Agarose hydrogels are widely used as scaffolding materials for engineering cartilage, neural, cardiac, bone, skin, and corneal tissues. Their mechanical tunability allows precise matching of native tissue stiffness, which is critical for guiding cell differentiation, extracellular matrix deposition, and tissue-specific function. Agarose-based constructs are particularly valuable in cartilage and neural tissue engineering, where controlled mechanical environments and low vascularization are advantageous.
3D Cell Culture & Disease Models
In three-dimensional culture systems, agarose hydrogels serve as highly reproducible platforms for studying cell behavior, mechanotransduction, and tissue-level responses. Their optical clarity and stable mechanical properties make them suitable for in vitro disease models, including cancer spheroids, neural tissue surrogates, and intervertebral disc analogs.
Drug, Gene & Cell Delivery
Agarose hydrogels enable localized and controlled delivery of drugs, genes, and living cells. Their porous structure supports diffusion-controlled release, while modifications to gel composition or architecture allow tuning of release kinetics. Agarose matrices have been used to encapsulate antibiotics, growth factors, nanoparticles, and therapeutic cells for targeted and minimally invasive delivery strategies.
Why the Viscoelasticity of Agarose Hydrogels Matters
The viscoelastic properties of agarose hydrogels play a central role in their biological and functional performance. Living tissues experience time-dependent mechanical cues, and agarose hydrogels replicate these behaviors through combined elastic stiffness and viscous energy dissipation. Viscoelasticity influences cell morphology, differentiation pathways, nutrient transport, and mechanotransduction signaling. In load-bearing or dynamic environments, appropriate viscoelastic tuning ensures mechanical stability while preventing stress shielding or cellular dysfunction.
Methods to Characterize the Viscoelasticity of Agarose Hydrogels
Mechanical characterization of agarose hydrogels commonly involves bulk testing techniques such as oscillatory rheometry, unconfined compression, indentation, and tensile testing. These methods quantify elastic and viscous moduli, stress relaxation, and creep behavior.
However, traditional mechanical tests often present limitations, including sample destruction, dehydration during testing, limited temporal resolution, and challenges in monitoring long-term mechanical evolution under sterile conditions.
Case study: Mechanical Characterization of Agarose Hydrogel Using ElastoSens™ Bio
ElastoSens™ Bio: A Non-Destructive Tool to Measure Soft Agarose Hydrogels
ElastoSens™ Bio is a non-destructive resonance-based system designed for real-time measurement of soft hydrogel mechanics. The technology monitors changes in viscoelastic properties by tracking the resonance frequency and damping behavior of samples without physical contact or deformation.
For agarose hydrogels, ElastoSens™ Bio offers key advantages:
- Accurate measurement of low-modulus, highly hydrated materials.
- Real-time monitoring of gelation, maturation, and remodeling.
- Preservation of sample integrity for longitudinal studies.
- Compatibility with sterile and biologically relevant workflows.
- High repeatability and sensitivity for comparative formulation analysis.
These capabilities make ElastoSens™ Bio particularly well suited for characterizing agarose hydrogels in tissue engineering, drug delivery, and mechanobiology research.
To demonstrate the capabilities of the ElastoSens™ Bio, we performed a series of tests on agarose-based hydrogels. The following section outlines the materials and methods used to characterize agarose gelation and mechanical evolution, followed by the results, providing a practical example of the instrument’s ability to non-destructively monitor viscoelastic properties over time.
Material and methods
Agar (Sigma–Aldrich, USA) was prepared at 1% (w/v) by dispersing the powder in deionized water and heating to boiling (95–100 °C) under continuous stirring until fully dissolved. The solution was then held at 60 °C in a water bath to maintain a liquid state prior to measurement. Gelation measurements were performed using an ElastoSens™ Bio system equipped with the macro sample holder (6 mL per test). The instrument temperature chamber was set to 15 °C, and viscoelastic properties were recorded for 45 min with a 5 s acquisition interval.
Results and discussion
At 15 °C, 1% (w/v) agar has typical gelation behavior: G′ remained low initially, then increased through the sol–gel transition and approached a stable plateau within the 45 min measurement window (Figure 1, left). Endpoint measurements confirmed solid-like mechanics, with G′ markedly higher than G″ (Figure 1, right; n = 3), consistent with a predominantly elastic gel.
Agar gelation can be tuned by adjusting experimental parameters. Changing factors such as agar concentration, temperature/cooling rate, and sample geometry shifts (i) the time to gelation (kinetics) and (ii) the plateau G′ (final stiffness). In practice, adjusting these parameters allows targeting either faster gelation or a stiffer final gel, depending on the application.

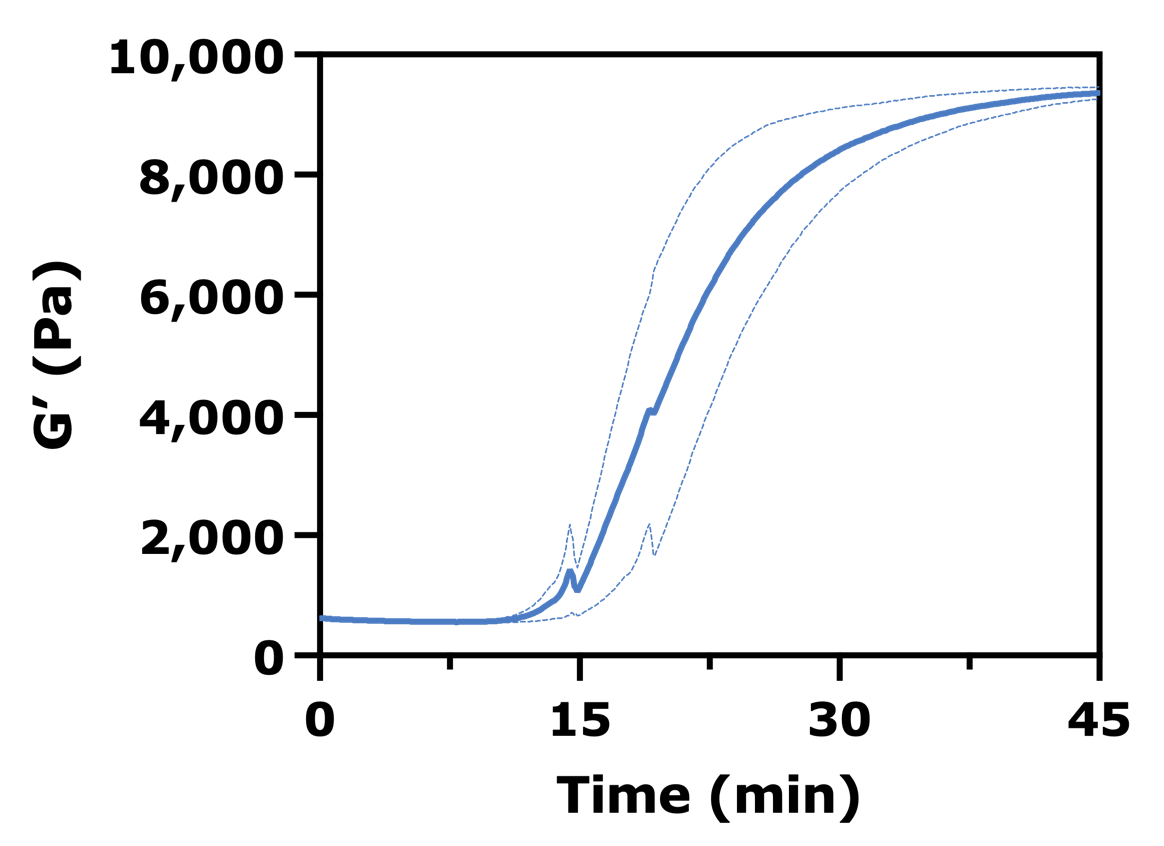

Figure 1. Time-dependent gelation kinetics of 1% (w/v) agar measured over 45 min at 15 °C (left; mean ± SD, dashed lines).

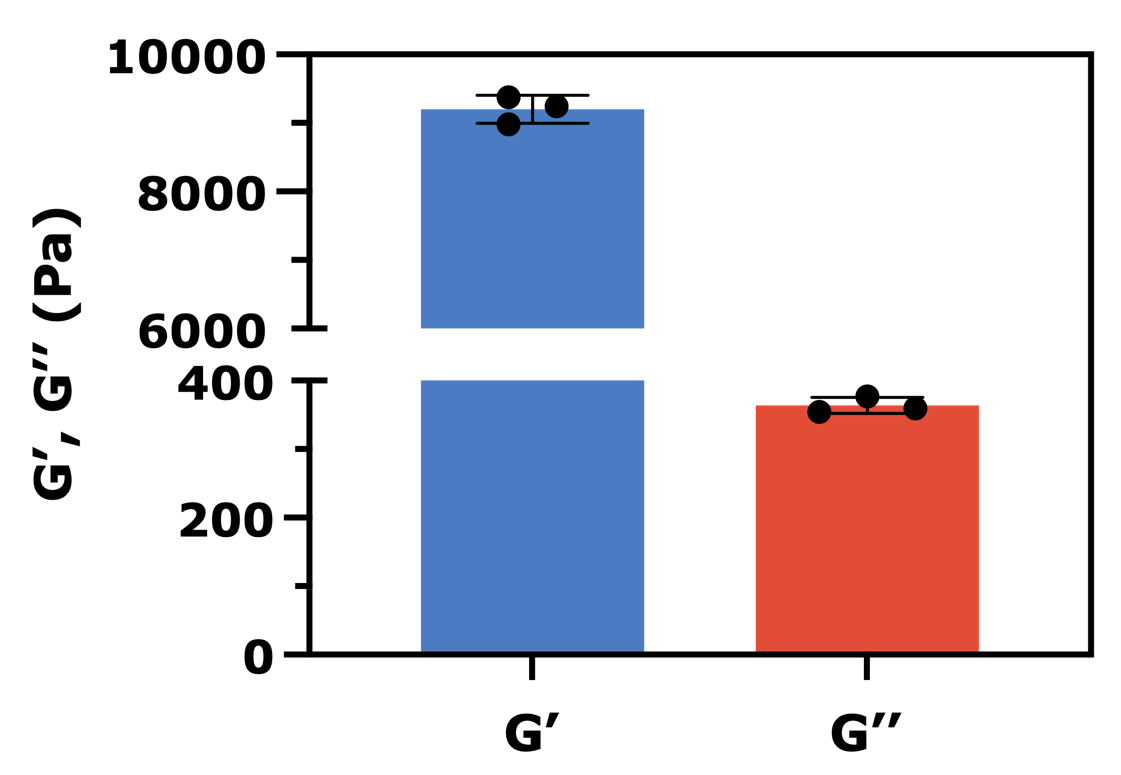

Figure 2. Final viscoelastic moduli at 15 °C (right; storage modulus G′ and loss modulus G″, n = 3).
Conclusions and perspectives
The mechanical behavior of agarose hydrogels—driven by their thermo-reversible physical network, viscoelastic response, and concentration-dependent structure—is fundamental to their function in biological and engineered systems. As soft, highly hydrated, and physically crosslinked materials, agarose hydrogels require mechanical characterization methods that preserve network integrity and experimental conditions.
Non-destructive viscoelastic characterization with the ElastoSens™ Bio supports advanced analysis of agarose hydrogels by enabling:
- Non-destructive testing optimized for soft materials.
- High sensitivity and repeatability across low-stiffness regimes.
- Real-time monitoring of gelation kinetics, including liquid–gel transition and final stiffness.
- Longitudinal measurement of the same sample, enabling mechanical evolution studies.
- Compatibility with sterile workflows, when required.
Together, these capabilities enable robust structure–property understanding, improved reproducibility, and more reliable translation of agarose hydrogel systems in research and biomedical applications.
