Application Note | ElastoSens™ Bio
Measuring mechanical properties of peritoneal membrane tissue using ElastoSens™ Bio
Introduction
The peritoneal membrane is a thin, semi-permeable tissue whose mechanical behavior is closely tied to its structure, vascular network, and ability to withstand pressure-driven fluid movement. During normal function or during peritoneal dialysis, the membrane is continuously subjected to osmotic gradients, hydrostatic pressures, and shifts in tissue hydration—each of which reveals aspects of its mechanical performance. Clinical tests and in-vivo optical tools capture how the membrane responds to these forces through measurable changes in water transport, deformation, and solute mobility. By studying these mechanical characteristics, scientists and clinicians can better understand how a healthy peritoneal membrane functions, detect early signs of disease, and design therapies that restore or preserve performance.
Key mechanical properties of peritoneal membrane tissue
Stiffness
Changes in extracellular matrix content, capillary arrangement, and tissue thickness alter the membrane’s structural stiffness. Increased collagen deposition or interstitial expansion adds mechanical rigidity, influencing how the membrane resists deformation and modulates solute and water movement.
Compliance
The peritoneal membrane and surrounding tissues show measurable deformation as intraperitoneal pressure increases during fluid instillation. This ability to expand without excessive pressure buildup reflects the membrane’s compliance—an essential mechanical property for safe and effective fluid exchange.
Anisotropy
In-vivo optical measurements demonstrate that mechanical behavior varies across anatomical regions of the membrane. Differences in microvascular density, interstitial organization, and surface structure create localized variations in mechanical resistance and transport performance.
Relationship between diseases and mechanical properties of peritoneal membrane tissue
Fibrosis
Fibrosis leads to collagen accumulation, thickening of the interstitium, and reduced osmotic conductance. These structural alterations increase mechanical resistance, reducing free-water transport and limiting the membrane’s ability to respond effectively to pressure and osmotic gradients. Over time, fibrosis diminishes the membrane’s functional capacity and mechanical adaptability.
Chronic Inflammation
Persistent inflammation alters vascular surface area and capillary permeability, modifying mechanical behavior by increasing solute transfer and accelerating dissipation of osmotic gradients. These changes can contribute to reduced ultrafiltration efficiency and impaired mechanical responsiveness of the tissue during dialysis exchanges.
Encapsulating Peritoneal Sclerosis (EPS)
EPS represents a severe form of acquired peritoneal injury characterized by excessive fibrosis, tissue thickening, and structural remodeling that dramatically stiffen the membrane. These mechanical changes can impair both elasticity and transport capability, eventually restricting organ mobility and creating life-threatening complications.
Ultrafiltration Failure
When the membrane loses its ability to generate adequate water transport under osmotic load, its functional mechanics are compromised. Structural changes such as increased tissue resistance, altered pore pathways, and damage to capillary structures reduce effective mechanical performance and compromise the membrane’s fluid-handling capacity.
How peritoneal membrane tissue mechanics are assessed
In Vivo techniques (Clinics)
In clinical and experimental in-vivo settings, the mechanical and transport behavior of the peritoneal membrane is assessed through functional measurement tools rather than direct mechanical loading. Standardized clinical protocols—such as the Peritoneal Equilibration Test—characterize how the peritoneal membrane responds to osmotic and hydrostatic forces during dialysis, indirectly reflecting its structural integrity and capacity to handle pressure-driven fluid movement. Emerging optical technologies such as fiber-optic fluorescence recovery after photobleaching enable localized, real-time quantification of solute movement within the living membrane. These in-vivo tools provide clinicians and researchers a window into how the membrane behaves under physiological loading conditions, how it adapts to long-term therapies, and when its function begins to deteriorate.
Ex Vivo techniques (Research)
In research environments, native peritoneal tissues are analyzed using controlled ex-vivo mechanical testing platforms that quantify their structural and material properties. Techniques such as uniaxial tensile testing, indentation, and other force–deformation methods help researchers evaluate tissue stiffness, elasticity, and failure behavior. These instruments enable direct mechanical characterization of peritoneal samples, supporting investigations into how fibrosis, inflammation, cellular composition, and extracellular matrix organization alter mechanical resilience. By combining ex-vivo mechanical data with in-vivo functional assessments, researchers gain a more complete understanding of how structural changes translate to clinical performance.
Case study: Peritoneal membrane tissue mechanical characterization with ElastoSens™ Bio
ElastoSens™ Bio: a contactless tool for Ex Vivo tissue testing
In the study of peritoneal membrane biomechanics, the ElastoSens™ Bio offers a modern and insightful approach to ex vivo tissue analysis. Its non-destructive, continuous viscoelastic measurements allow researchers to characterize the mechanical behavior of delicate peritoneal samples without compromising their structural integrity. By enabling repeated testing over time and under controlled environmental conditions, the technology provides deeper mechanical insights than traditional end-point or destructive testing methods.
To demonstrate the capabilities of the ElastoSens™ Bio, we conducted an ex vivo study using peritoneal membrane specimens. The next section outlines the materials and methods employed, followed by the experimental findings, illustrating a practical example of how this instrument can be applied to peritoneal research.
Material and methods
Porcine peritoneal membrane was obtained from Sustainable Swine Resources (SSR). Samples were cut into circular punches for loading into ElastoSens™ Bio membrane holders (Figure 1). 3 layers of the membrane were fixed to the holder, making an average thickness of 1.8 mm. To prevent drying, samples were immersed in phosphate-buffered saline (PBS) overnight at 4 °C prior to testing. Each specimen was then placed in the ElastoSens™ Bio instrument at 25 °C for 1 hour to equilibrate. Excess PBS was gently removed before measurement.
Moreover, the porcine peritoneal membrane fat was also tested. Specimens with an approximate weight of 3.0 g were sectioned and placed in the macro holders for testing (Figure 2). To prevent drying, samples were also immersed in phosphate-buffered saline (PBS) overnight at 4 °C prior to testing. Each specimen was then placed in the macro holder of the ElastoSens™ Bio instrument and equilibrated at 37 °C for 1 hour. Excess PBS was gently removed before measurement.
The instrument provided real-time viscoelastic parameters, including the shear storage modulus (G′) and the shear loss modulus (G″). For each condition, results were expressed as mean values obtained from three samples, collected from different regions of the same peritoneal membrane or fat (n = 3).

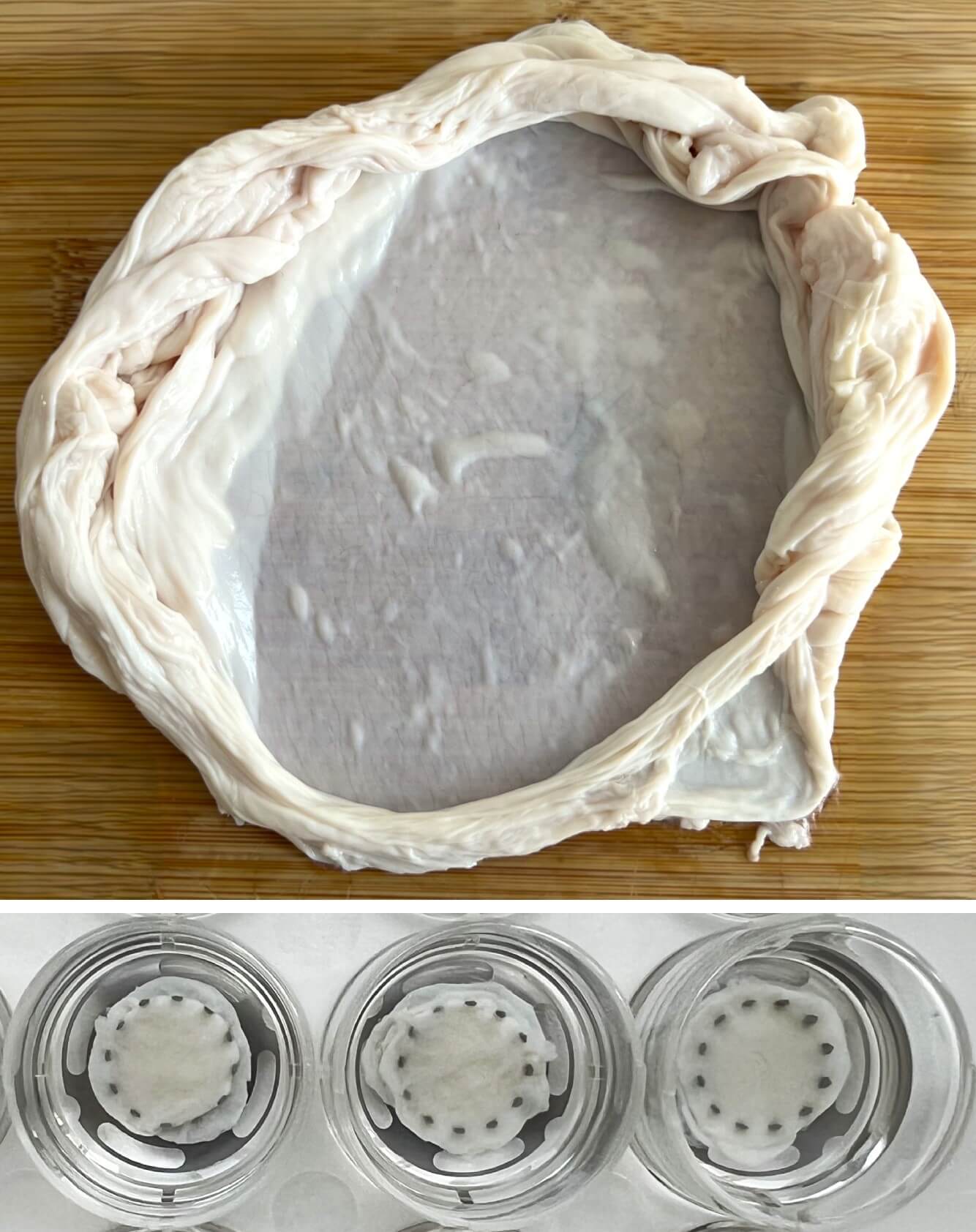

Figure 1. Porcine peritoneal membrane tissue prepared and loaded into the ElastoSens™ Bio membrane holders for non-destructive viscoelastic characterization. The top panel shows the intact peritoneal sample prior to sectioning, and the bottom panel shows representative peritoneal punch fixed in the the holders for testing (3 layers).

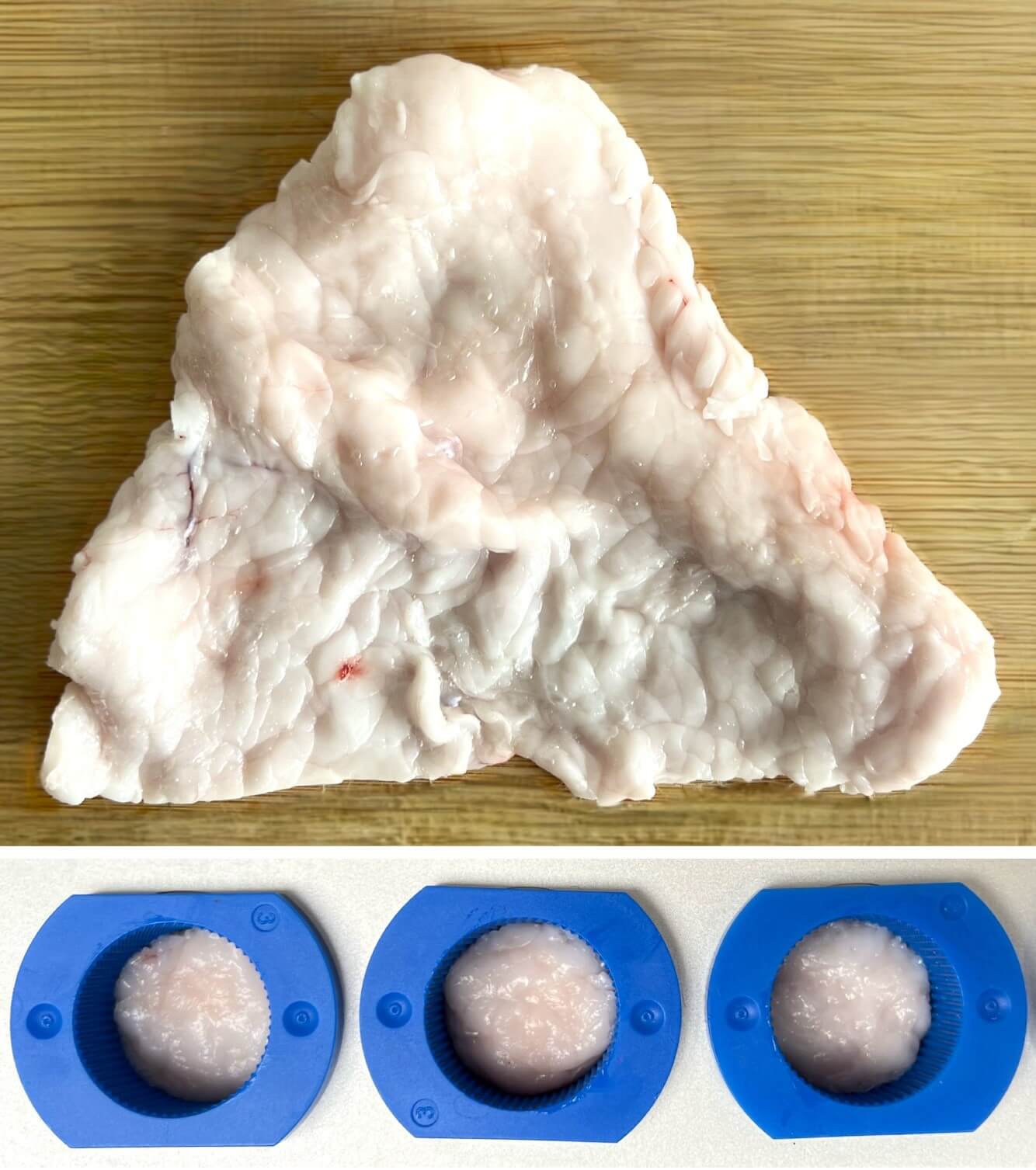

Figure 2. Porcine peritoneal fat tissue prepared and loaded into the ElastoSens™ Bio macro holders for non-destructive viscoelastic characterization. The top panel shows the intact peritoneal fat sample prior to sectioning, and the bottom panel shows representative peritoneal punch fixed in the the holders for testing.
Results and discussion
The viscoelastic properties of porcine peritoneal membrane were evaluated using the ElastoSens™ Bio testing system (Figure 3). The shear storage modulus (G′) averaged 1554 ± 82 Pa (n = 3). The porcine peritoneal fat had a G’ of 3442 ± 156 Pa and shear loss modulus (G’’) of 1799 ± 123 Pa (n = 3), indicating a stiffer response than the membrane.
For comparison, direct viscoelastic measurements of porcine peritoneal membrane are limited. Existing adipose rheology studies primarily focus on subcutaneous or general visceral fat. In a study of porcine adipose tissue tested at 25 °C, Comley and Fleck reported linear-regime shear storage moduli of approximately 530 ± 250 Pa and 110 ± 60 Pa, depending on anatomical location and preparation. Although our peritoneal fat G′ (3442 ± 156 Pa) is higher, differences may reflect factors such as adipose depot (peritoneal/visceral vs. subcutaneous), temperature (37 °C in our measurements), sample geometry, and differences in testing configuration. Notably, the ElastoSens™ Bio provides a simple, non-destructive way to quantify soft-tissue viscoelasticity on intact specimens with minimal handling, enabling straightforward comparisons across tissue types.

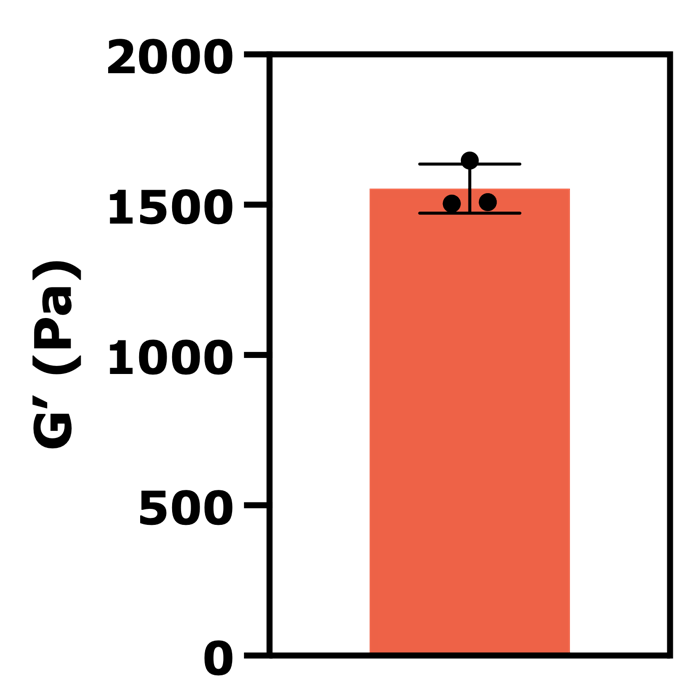

Figure 3: Viscoelastic properties of porcine peritoneal membrane: shear storage modulus (G′) obtained with the ElastoSens™ Bio non-destructive testing system (mean ± SD, n=3).

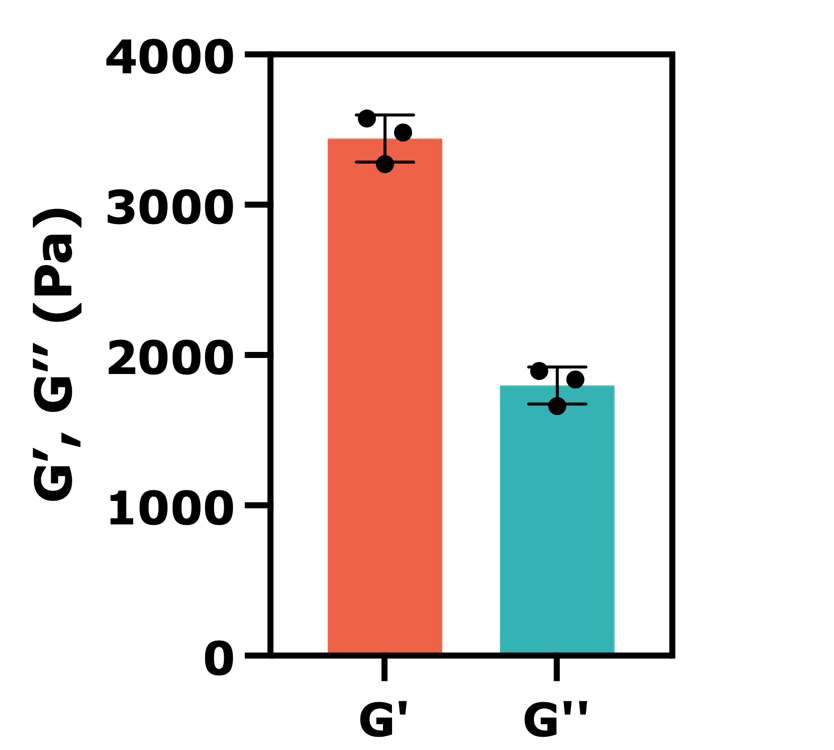

Figure 4: Viscoelastic properties of porcine peritoneal fat: shear storage modulus (G′) and shear loss modulus (G’’) obtained with the ElastoSens™ Bio non-destructive testing system (mean ± SD, n=3).
Conclusions and perspectives
The mechanical properties of the peritoneal membrane—defined by its compliance, viscoelasticity, and microstructural organization—are fundamental to understanding its physiological roles in fluid exchange, barrier protection, and adaptive responses during mechanical or osmotic loading. As a delicate and highly dynamic tissue, the peritoneal membrane undergoes continuous mechanical interplay with intraperitoneal pressure, tissue hydration, and vascular transport. Studying its mechanical behavior provides critical insights into how it maintains function in health, how it becomes compromised in conditions such as inflammation or fibrosis, and how therapeutic strategies or biomaterials might preserve or restore its performance.
- Non-destructive viscoelastic testing with the ElastoSens™ Bio enables reliable quantification of peritoneal membrane mechanics, capturing key parameters such as shear storage modulus (G′) and shear loss modulus (G″).
- This approach provides precise and reproducible data, offering a robust baseline for peritoneal biomechanics research, dialysis-related investigations, and studies of structural remodeling.
- Simple preparation and minimal handling help preserve mesothelial integrity and tissue hydration, ensuring that native mechanical behavior is accurately measured.
- High sensitivity and repeatability allow consistent measurements across different peritoneal regions, capturing natural variability associated with organ-specific attachment sites and microvascular differences.
- Cross-species benchmarking enables translational comparisons of peritoneal membrane mechanics between animal models and human tissue under controlled, identical test conditions.
- Platform versatility supports the mechanical evaluation of native peritoneal tissues, engineered membrane constructs, biomaterials, and scaffolds designed for peritoneal repair or dialysis applications.
- Controlled incubation and repeated, non-destructive testing allow monitoring of viscoelastic changes over time—useful when simulating dialysis exposure, inflammatory conditions, drug treatments, or fibrosis progression.
- Engineered tissue applications benefit from longitudinal, gentle testing that captures how peritoneal constructs mature, remodel, or respond to mechanical conditioning.
Taken together, these capabilities position the ElastoSens™ Bio as a powerful tool for advancing our understanding of peritoneal membrane biomechanics, supporting both basic research and the development of therapies, biomaterials, and functional models aimed at protecting or improving peritoneal membrane performance.
References
Ito, Y., Sun, T., Tawada, M., Kinashi, H., Yamaguchi, M., Katsuno, T., … & Ishimoto, T. (2024). Pathophysiological mechanisms of peritoneal fibrosis and peritoneal membrane dysfunction in peritoneal dialysis. International Journal of Molecular Sciences, 25(16), 8607.
Lee, D., Kim, J. C., Shin, E., Ju, K. D., Oh, K. H., Kim, H. C., … & Kim, J. K. (2015). In vivo measurement of site-specific peritoneal solute transport using a fiber-optic-based fluorescence photobleaching technique. Journal of the Optical Society of Korea, 19(3), 228-236.
Morelle, J., Stachowska-Pietka, J., Öberg, C., Gadola, L., La Milia, V., Yu, Z., … & Davies, S. (2021). ISPD recommendations for the evaluation of peritoneal membrane dysfunction in adults: classification, measurement, interpretation and rationale for intervention. Peritoneal Dialysis International, 41(4), 352-372.
Comley, K. S. C., & Fleck, N. A. (2009). The mechanical response of porcine adipose tissue. ASME Journal of Biomechanical Engineering, 131(7).
