Application Note | ElastoSens™ Bio
Measuring mechanical properties of intestine tissue using ElastoSens™ Bio
Introduction
The intestine is a highly specialized segment of the gastrointestinal tract, responsible for nutrient absorption, fluid balance, and continuous interaction with the microbiome. Its function depends not only on biochemical activity but also on the mechanical properties of the intestinal wall, which determine how it expands, contracts, and transports luminal contents. The intestinal wall is a layered structure composed of mucosa, submucosa, muscle, and serosa, each contributing distinct mechanical behaviors such as elasticity, compliance, and anisotropy. Studying these properties provides crucial insights into physiological processes like peristalsis and barrier function, while also clarifying how diseases alter tissue integrity and function. By studying them, scientists and clinicians can better understand how a healthy intestine functions, detect early signs of disease, and design therapies that restore or preserve performance.
Key mechanical properties of intestine tissue
Elasticity and compliance
The intestine must adapt continuously to changes in volume during digestion and transit. Its elasticity and compliance allow the wall to stretch under luminal pressure while maintaining the ability to return to its resting state. Distension tests and constitutive modeling confirm that the intestine exhibits nonlinear elasticity, where small stretches are easily accommodated, but resistance increases at higher strains. This balance between elasticity and compliance is critical for both efficient nutrient absorption and protection against tissue damage.
Anisotropy
Intestinal tissues are mechanically anisotropic, meaning their properties differ depending on the direction of loading. The alignment of collagen, elastin, and muscle fibers produces distinct circumferential and longitudinal responses, which can be quantified through biaxial testing. Anisotropy ensures that the intestine expands more readily in some directions than others, supporting peristaltic propulsion and controlled luminal expansion.
Viscoelasticity
Beyond simple elastic behavior, the intestine also demonstrates viscoelasticity, combining solid-like and fluid-like responses. This means the tissue exhibits time-dependent strain under constant load, and stress relaxation during prolonged distension. Viscoelastic properties are vital for damping mechanical forces, preventing injury, and allowing smooth coordination of intestinal motility.
Relationship between diseases and mechanical properties of intestine tissue
Diabetes
Diabetes has been shown to significantly alter the mechanical behavior of gastrointestinal tissues, including the intestine. Experimental studies demonstrate increased stiffness and changes in collagen distribution within the intestinal wall of diabetic models. These modifications disrupt the delicate balance of compliance and contractility required for normal motility, contributing to complications such as altered transit time and impaired absorption.
Inflammatory Bowel Disease (IBD)
Chronic inflammatory conditions, such as Crohn’s disease and ulcerative colitis, directly affect the intestine’s mechanical integrity. Inflammation alters the mucosal and submucosal layers, leading to fibrosis and reduced compliance. These changes stiffen the wall, impair its ability to accommodate distension, and disrupt normal biomechanical function, thereby exacerbating symptoms like pain, obstruction, or abnormal motility.
Irritable Bowel Syndrome (IBS)
IBS is strongly associated with changes in intestinal biomechanics, even in the absence of overt structural pathology. Patients often exhibit abnormal sensitivity to distension, linked to alterations in wall compliance and mechanosensory function. These biomechanical differences contribute to hallmark symptoms such as bloating, discomfort, and irregular bowel habits.
How intestine tissue mechanics are assessed
In Vivo techniques (Clinics)
In clinical settings, the mechanical properties of the intestine are usually assessed indirectly through techniques such as balloon distension, pressure–diameter measurements, and manometry. These methods evaluate how the intestinal wall responds to controlled stretching or pressurization, providing insights into compliance, stiffness, and motility under near-physiological conditions. Imaging-based approaches, such as magnetic resonance elastography or ultrasound elastography, are emerging tools that can map viscoelastic properties non-invasively, although their application to the intestine is still developing. Together, these techniques help clinicians understand intestinal wall mechanics in vivo, which is essential for diagnosing functional disorders, assessing disease progression, and guiding therapeutic interventions.
Ex Vivo techniques (Research)
In research environments, excised intestinal tissues are tested using well-controlled mechanical assays that provide detailed quantitative data. Common methods include uniaxial and biaxial tensile testing, which stretch tissue samples in one or two directions to determine anisotropy; inflation–extension or distension tests, which simulate the pressurization and expansion of the intestinal lumen; and compression or indentation tests, which assess localized stiffness. These macroscopic experiments are often complemented by constitutive modeling, allowing researchers to build predictive simulations of intestinal mechanics under different loading conditions. Together, they provide a comprehensive understanding of biomechanics across scales, from tissue structure to cellular function.
Case study: Intestine tissue mechanical characterization with ElastoSens™ Bio
ElastoSens™ Bio: a contactless tool for Ex Vivo tissue testing
In the field of intestine biomechanics, the ElastoSens™ Bio offers an advanced approach to ex vivo testing. This instrument measures viscoelastic properties continuously and non-destructively, ensuring that tissue integrity is maintained throughout experiments. Its technology enables precise characterization of soft intestinal samples and allows repeated measurements over extended periods under controlled environmental conditions, thereby complementing and extending the insights provided by traditional mechanical assays.
To demonstrate the capabilities of the ElastoSens™ Bio, we conducted an ex vivo study on intestine tissue samples. The following section outlines the materials and methods used in this experiment, followed by the results, providing a practical example of the instrument’s application.
Material and methods
Sheep intestine tissue was obtained from a local farm. Specimens with an approximate weight of 3.0 g were sectioned and placed in the macro holders for testing.. To prevent drying, samples were immersed in phosphate-buffered saline (PBS) overnight at 4 °C prior to testing. Each specimen was then placed in the ElastoSens™ Bio instrument at 25 °C for 1 hour to equilibrate. Excess PBS was gently removed before measurement.
The instrument provided real-time viscoelastic parameters, including the shear storage modulus (G′) and the shear loss modulus (G″). For each condition, results were expressed as mean values obtained from three samples, collected from different regions of the same organ (n = 3).

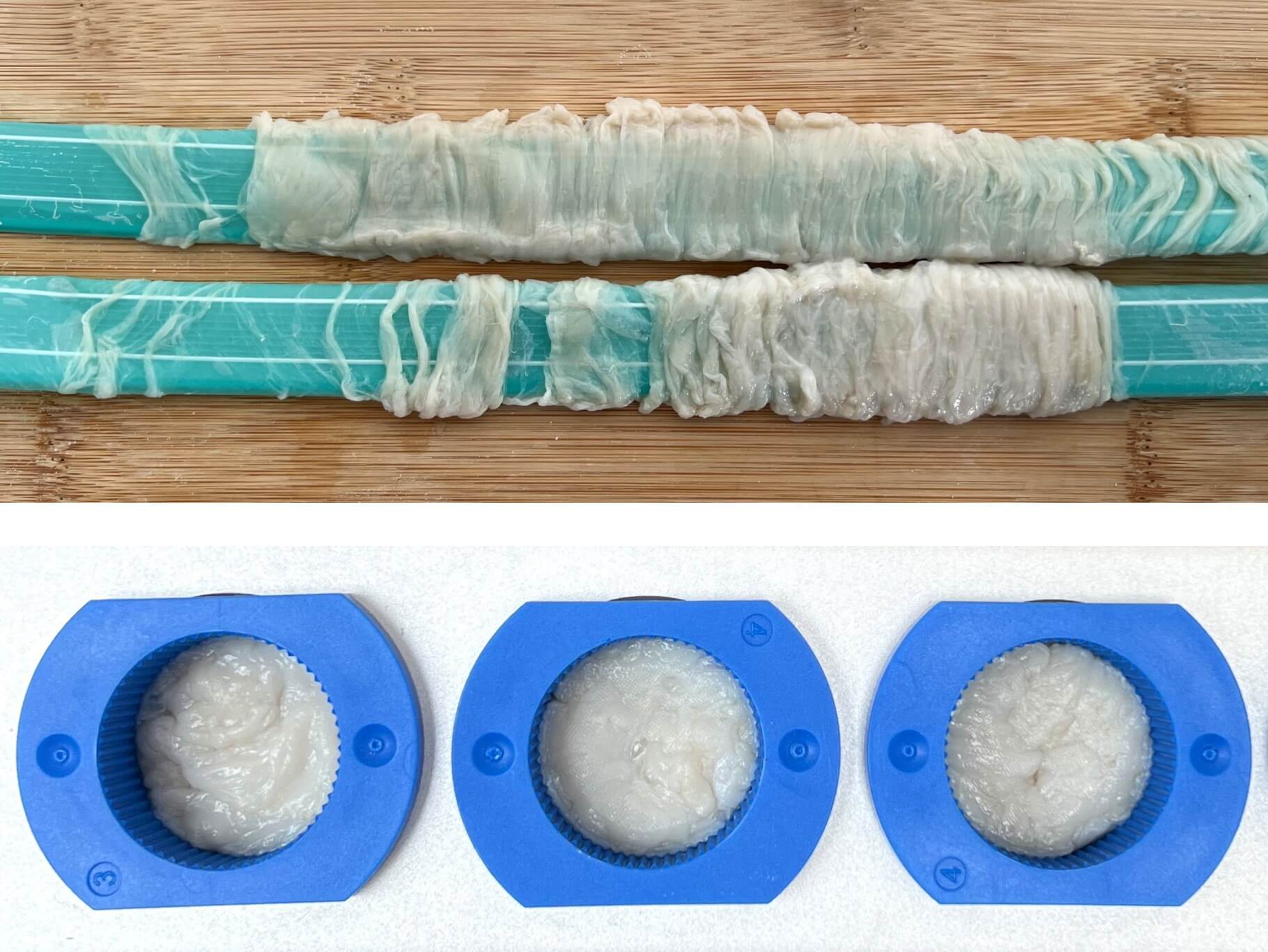

Figure 1. Sheep intestine prepared and loaded into the ElastoSens™ Bio macro holders for non-destructive viscoelastic characterization. The top panel shows the intact intestine sample prior to sectioning, and the bottom panel shows representative intestine portions placed in the holders for testing.
Results and discussion
The viscoelastic properties of sheep intestine were evaluated using the ElastoSens™ Bio non-destructive testing system (Figure 2). The shear storage modulus (G′) and shear loss modulus (G″) were measured as 38 ± 1.3 kPa and 17 ± 1.6 kPa, respectively (n = 3). For comparison, Rassoli & Fatouraee (2016) characterized sheep intestine using planar biaxial tensile tests and estimated a small-strain shear modulus of ~43 kPa. Interestingly, despite the differences in the testing and sampling methodology, and stimulation direction, the G′ values were quite similar. The ElastoSens™ Bio offers a practical advantage by simplifying measurements on delicate, hydration-sensitive organs such as the intestine.
Figure 2: Viscoelastic properties of sheep intestine: shear storage modulus (G′) and shear loss modulus (G’’) obtained with the ElastoSens™ Bio non-destructive testing system (mean ± SD, n=3).
Conclusions and perspectives
The mechanical properties of intestine tissue—defined by elasticity, viscoelasticity, and structural anisotropy—are fundamental to understanding its physiological roles in nutrient absorption, motility, and barrier function. Non-destructive viscoelastic testing with the ElastoSens™ Bio enables reliable quantification of intestinal mechanics, capturing key parameters such as shear storage modulus (G′) and shear loss modulus (G″). This approach provides precise and reproducible data, offering a robust baseline for both biomedical research and translational gastroenterology studies.
Beyond these findings, the ElastoSens™ Bio offers unique advantages for intestine and gastrointestinal tissue research:
- Simple preparation and setup minimize handling while preserving hydration and structural integrity.
- High sensitivity and repeatability allow consistent measurements across different intestinal regions (e.g., small versus large intestine), capturing regional variability.
- Cross-species benchmarking facilitates translational research by directly comparing intestinal mechanics in animal models and humans.
- Platform versatility supports testing of diverse soft tissues and biomaterials under identical conditions, making it useful for developing intestinal scaffolds, implants, or tissue-engineered substitutes.
- Controlled incubation and repeated testing enable monitoring of viscoelastic changes over time, whether due to diet, pharmacological treatment, microbiome shifts, or pathological conditions.
- Engineered tissue applications also benefit from non-destructive, repeated measurements that reflect the dynamic evolution of bioengineered intestinal constructs.
Taken together, these capabilities position the ElastoSens™ Bio as a powerful tool for advancing our understanding of intestinal biomechanics, supporting comparative physiology, and guiding the development of biomaterials and therapies intended to restore or optimize intestinal function.
References
Patel, B., Gizzi, A., Hashemi, J., Awakeem, Y., Gregersen, H., & Kassab, G. (2022). Biomechanical constitutive modeling of the gastrointestinal tissues: a systematic review. Materials & design, 217, 110576.
Durcan, C., Hossain, M., Chagnon, G., Perić, D., & Girard, E. (2024). Mechanical experimentation of the gastrointestinal tract: a systematic review. Biomechanics and Modeling in Mechanobiology, 23(1), 23-59.
Jung, S. M., & Kim, S. (2022). In vitro models of the small intestine for studying intestinal diseases. Frontiers in microbiology, 12, 767038.
Rassoli, A., & Fatouraee, N. (2016). Mechanical characterization and constitutive modeling of sheep small intestine under biaxial tensile test. Iranian Journal of Veterinary Medicine, 10(2), 85–96.
